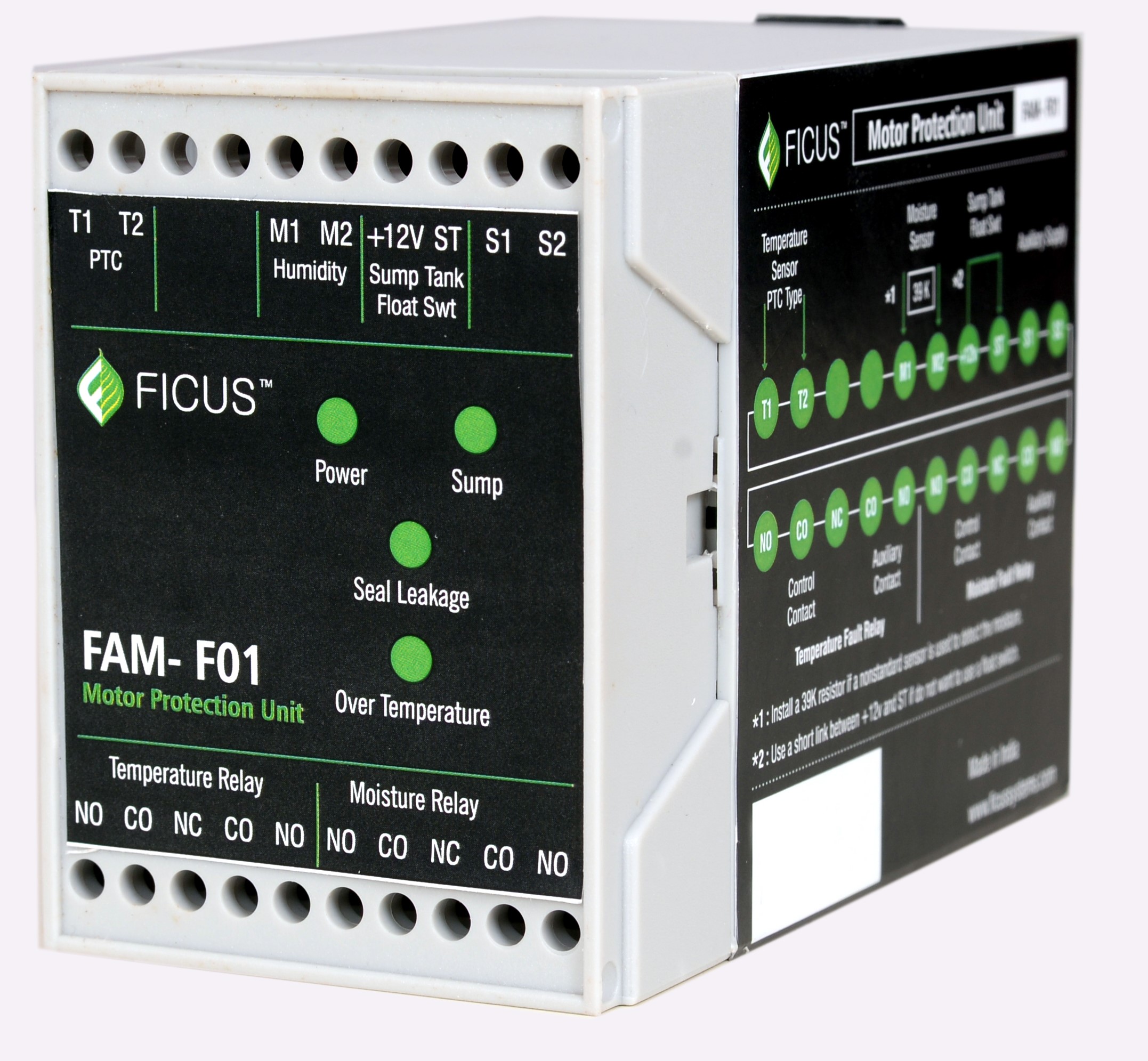

Motor Protection Unit
Moisture and Temperature Protection Relay
The Motor Protection Unit is used to protect the Non-Clog Submersible (NS) pumps from moisture ingress due to seal failure and prevention of high temperature in motor windings .
Benefits:
- Pump Motor Protection from Water ingress due to seal leakage.
- Pump motor protection from over temperature.
- Reduces panel building cost by avoiding multiple monitoring relays.
- Reduces pump downtime.
- User friendly & highly reliable.
Product Details:
- Model: FAM-F01
- Auxiliary supply: 1 Phase 230 V AC
- Failsafe mode of operation.
- Output contact:
- - Leakage: 2 NO, 1 NC
- - Temperature: 2 NO, 1 NC
- LED status indications:
- - Power On
- - Sump Level
- - Seal Leakage
- - Over Temperature
- Compact size with DIN rail mounting
- Easy to interface with starter with duplicate contacts
- Independent of pump motor rating
- Dimensions (W x H x D): 55X75X107.5d
- Mounting: DIN Rail
- Degree of protection: IP 20
