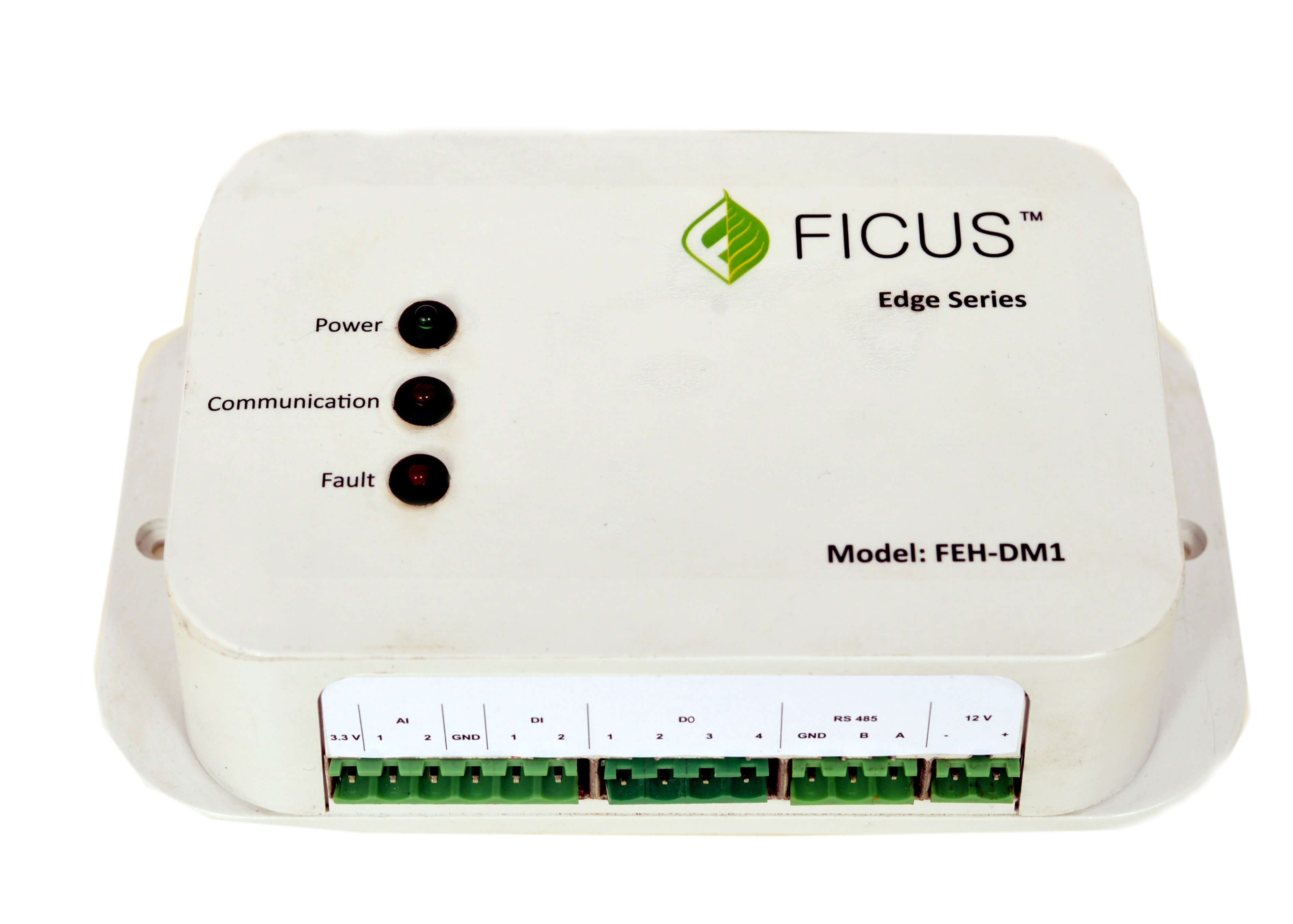

Ficus Edge Series: Data Logger + Cloud Gateway
High quality Customized Data Acquisition with Cloud Gateway functionality. Suitable for collection of all types of data from various industrial devices such as Energy Meters, Flow Meters, PLCs, machines, field devices through RS485. Edge series Mini is suitable to connect to your field devices for data acquisition and control. Ability to send the data to a cloud server using Wi-Fi or GSM-GPRS.
Applications:
- Energy Meter and Flow Meter Data Reading. Data Communication to Cloud Server.
- Remote Controlling your Pumps, Motors, Boom Barriers, Gates etc
- Suitable for use cases where you need to read industrial data and control your equipments remotely
- Data reading and Controlling field devices
- Supports Modbus communication protocol and MQTT protocol
Product Details
- Analog Input: 2 Nos. Type: 4 mA-20 mA/Resistive/Voltage
- Digital Input: 2 Nos. Type: Common Positive/Common Negative/Potential Free
- Digital Output: 4 Nos. Type: 12V-1A/24V-1A/230V AC/24V DC
- Display(Optional): Type: OLED/TFT
- RS485
- LED Indications: 3
- Local Storage: onboard SD Card (optional)
- Communication: WiFI, GSM-GPRS, Bluetooth
- Configuration Support(Local OTA)
- Supports Modbus, MQTT, and HTTP(S) protocol
- Ability to connect/drive External Relays
- RTC Support
- Operating Temp: From -20°C to 0°C
- Humidity: 0% - 90% non-Condensing
- Dimensions(in mm): 149.3x40x85.3
- Mounting: Wall mounting through screw
- Degree of protection: IP 20
- Enclosure Colour: Off-white
